CS7630B/H USB PD 3.0 and QC 3

1. Features

    On-chip Multiple Charging Standard Identifications:

    USB Power Delivery 3.0 Fix PDO, PPS (3.3V~11V) & CC Logic

    Qualcomm® Quick Charge 2.0 and 3.0 Class A

    USB Battery Charging v1.2 on DP & DM pins (5V/1.5A, 7.5W)

    Support Chinese Telecommunication Industrial Standard YD/T 1591-2009

    Apple mode (5V/2.4A on DP & DM pins, 12W)

    Support Samsung® Adaptive Fast Charging (AFC)

    Support HiSilicon® Fast Charge Protocol (FCP)

    HiSilicon® Super Charge Protocol (SCP v1)  Proprietary Low voltage direct charging protocol

    Housekeeping function for OVP, UVP

    2KV HBM and 1KV CDM ESD Level

    -40 OC ~ +125 OC Operating Temperature

    Package: ESOP-8

    RoHS compliant and Halogen free

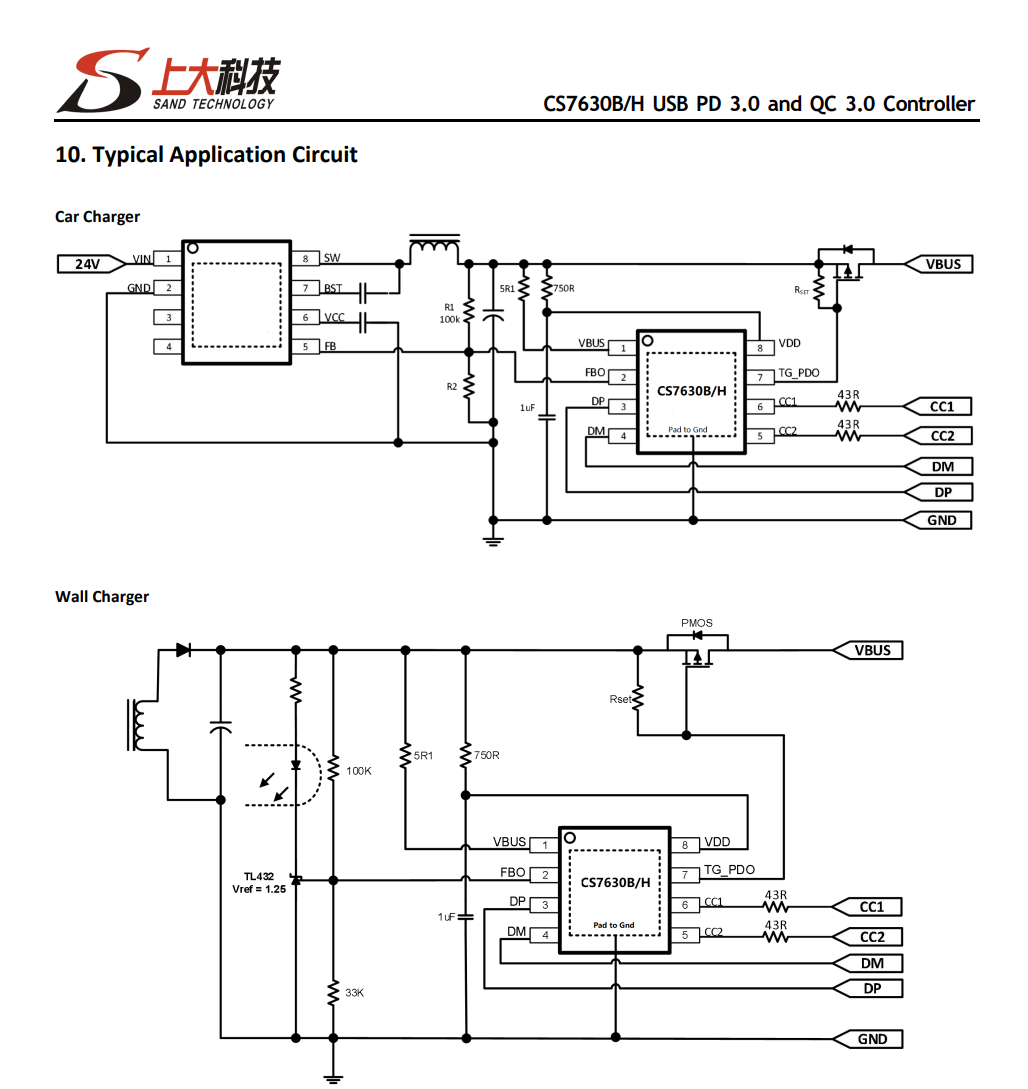

   2. Application

    Wall Adapter

    Car Charger

    Portable Power Bank

    USB Power Plugs




   3. Ordering Information ：CS7630B/H ESOP-8 3K/盘






   更多应用资料，请联系我们。
